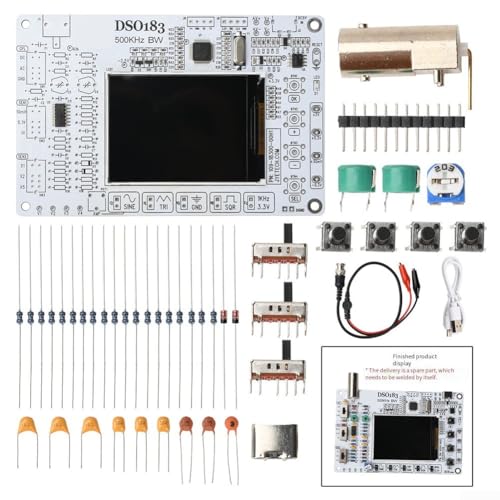

Digital Oscilloscope Kit DSO183 DC 5V Electronics Training Board with Signal Generator 500kHz Bandwidth 12-Bit ADC for DIY Learning and Circuit Analysis(Parts)
by FABULETTA
- [SINGLE-BOARD DESIGN FOR BENCH USE] The DSO183 DC 5V digital oscilloscope features an integrated single-board layout with power, compact footprint and stable operation tailored for workshops, makerspaces and electronics training., [500KHZ CAPABLE FOR DETAILED MEASUREMENTS] 500kHz bandwidth enables accurate capture of waveform harmonics and transient events common in analog and embedded projects, improving diagnostic on circuits under test., [ENHANCED RESOLUTION AND SAMPLING] 12-bit ADC accuracy combined with a 5Msps real-time sampling rate gives enhanced vertical detail and smoother traces compared to lower-resolution units., [STORAGE, GENERATOR AND BUFFER] Built-in sine and triangle waveform output plus waveform storage and recall with a 1024-point buffer testing workflows and let you compare real signals to reference patterns., [INPUT PROTECTION AND TRIGGER FLEXIBILITY] Designed for practical measurements with 1M ohm input impedance, 50Vpk maximum input, DC/AC/GND coupling and trigger modes (Auto, Normal, Single) alongside 1 us/div to 500 s/div timebase options.
