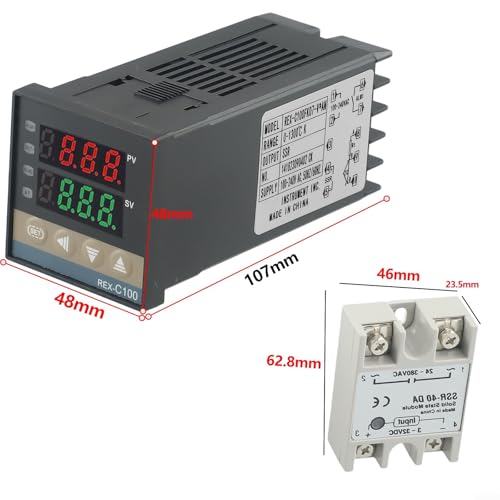

REX-C100 Digital PID Temperature Controller Kit 0-1300°C for K Thermocouple Probe, 40A SSR-Relay and Heat Sink for Industrial Heating Control
by Lioaeust
- -【PID Temperature Controller】: This set includes a digital PID REX-C100 AN temperature controller, max. 40A-SSR, and K Thermocouple for precise temperature control., -【 Control Settings】: The proportional bands (P) can be adjusted from 0 to the full range, allowing for precise ON/OFF control. The integral time (I) and derivative time (D) can also be adjusted from 0 to 3600 sec, providing flexibility in control options., -【Easy-to-Read Display】: The temperature controller features an LED display that shows the process value (PV), setting value (SV), output, and self-tuning status, providing clear and convenient monitoring., -【Reliable Relay Output】: The relay output has a contact capacity of 250V AC 3A, ensuring stable and safe operation., -【Insulation and Protection】: The temperature controller has insulation resistance greater than 50M ohm (500V DC) and can withstand 1500V AC/min, guaranteeing safe usage. The power consumption is less than 10 VA.
