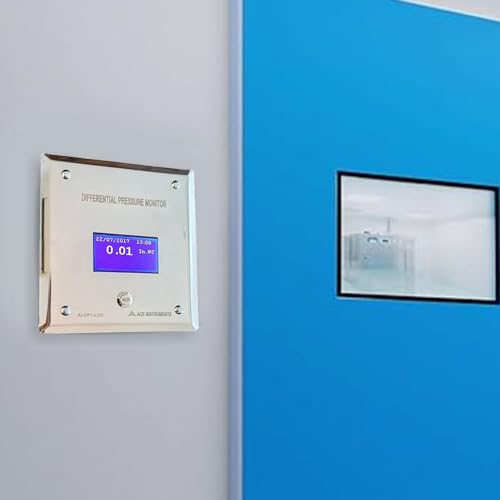

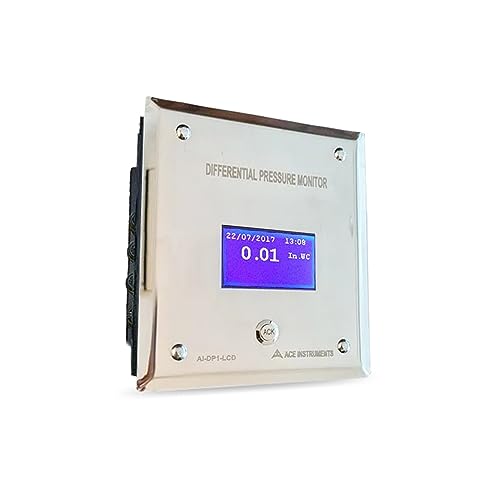

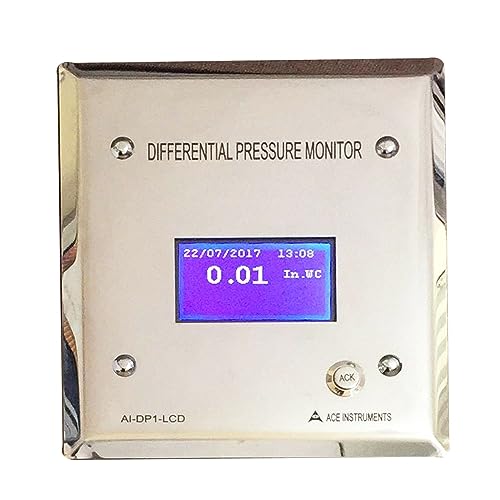

Digital Differential Pressure Indicator for Infection Rooms, Hospital OT Rooms with Calibration Certificate Model: ACE AI-DP1-LCD (Range: -180 to 180 Pascals/ -0.72 to 0.72 in.Wc)
by Ace Instruments
- Measuring Ranges: -0.72 to +0.72 In.WC / -18 to 18 mm.WC / -180 to 180 Pascals | Accuracy: ±0.5% of Full Scale | Isolated (Optional) | Display: LCD | Maximum Over Pressure: 4 Times the rated pressure | Sensors: Integrated High Speed Differential Pressure Sensor., Power: 24V DC Typical (Adaptor fit well in the canada country) | Alarms: Built In High & Low Buzzer Alarm for Process Set Parameter Violation with Acknowledgement Key | Construction: M.S. Powder Coated Body(Back)with Stainless Steel Front Flush Plate for Modular Wall Fitment in Clean Rooms., Communication: Isolated RS485 Modbus Protocols| Connection: 2 Nos. Hose Nipples of 4mm. Stainless Steel at the Back | Medium: Air or Gases ( Non Corrosive ), Dimensions: Instrument Enclosure is in 100×90×30 mm. (W×H×D) | Unit Selection: Factory Fixed Selection for mm.W.C/Pascals., Supply Scope: 1 Unit of Differential Pressure Indicator, 1 Pair of Wall-Mounted Hose Nipples, Power Adaptor (Fits well in the USA and European countries also), Instruction Manual and Factory Calibration Certificate | Applications: Infection Rooms, Hospital Operation Theatre (OT) rooms, Isolation Rooms, Laminar Air Flow Cabinets, Pharmaceutical Clean Rooms, HVAC, Bio Safety Cabinets, AHUs and numerous others.
