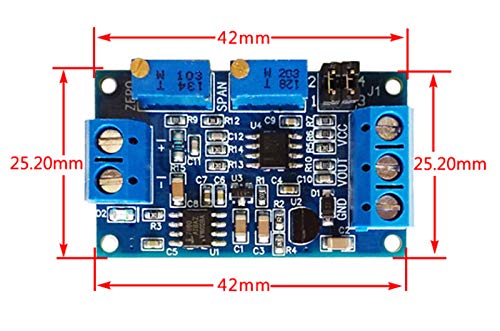

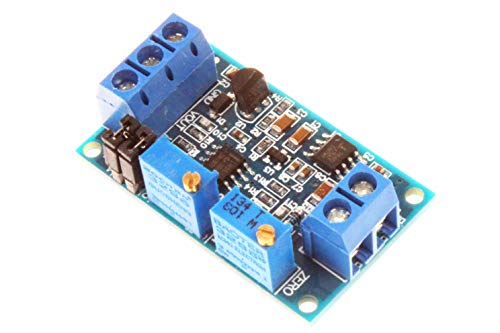

NOYITO Current to Voltage Converter Signal Conversion Module 4-20mA 0-20mA to 0-3.3V 0-5.0V 0-10.0V Amp to Volt Transmitter Board
by NOYITO
- NOYITO current to voltage converter module will be powered by 7-36V, current input range is 4-20mA/0-20mA, voltage output range is 0-3.3V/0-5V/0-10V.
, Usage: In the process of signal transmission, the voltage signal will be weaker with the increase of transmission distance. Current transmission can avoid the signal weakening.
, High accuracy: The current signal sampling resistor adopts high-precision color ring resistance, offers high accuracy, small temperature drift and high power.
, Adjustable: Zero and full range can be adjusted as your needs; the module is with high stability, good linearity, industrial grade.
, Reserve connection protection: It is designed with reverse connection protection, if wires connect reversely, it will protect the module from burning.
